1:8 Gradient Rubber Ramp Wings – 900mm Wide (Recycled Tyre Rubber)
Australian-made • Durable • Safe • NDIS-friendly

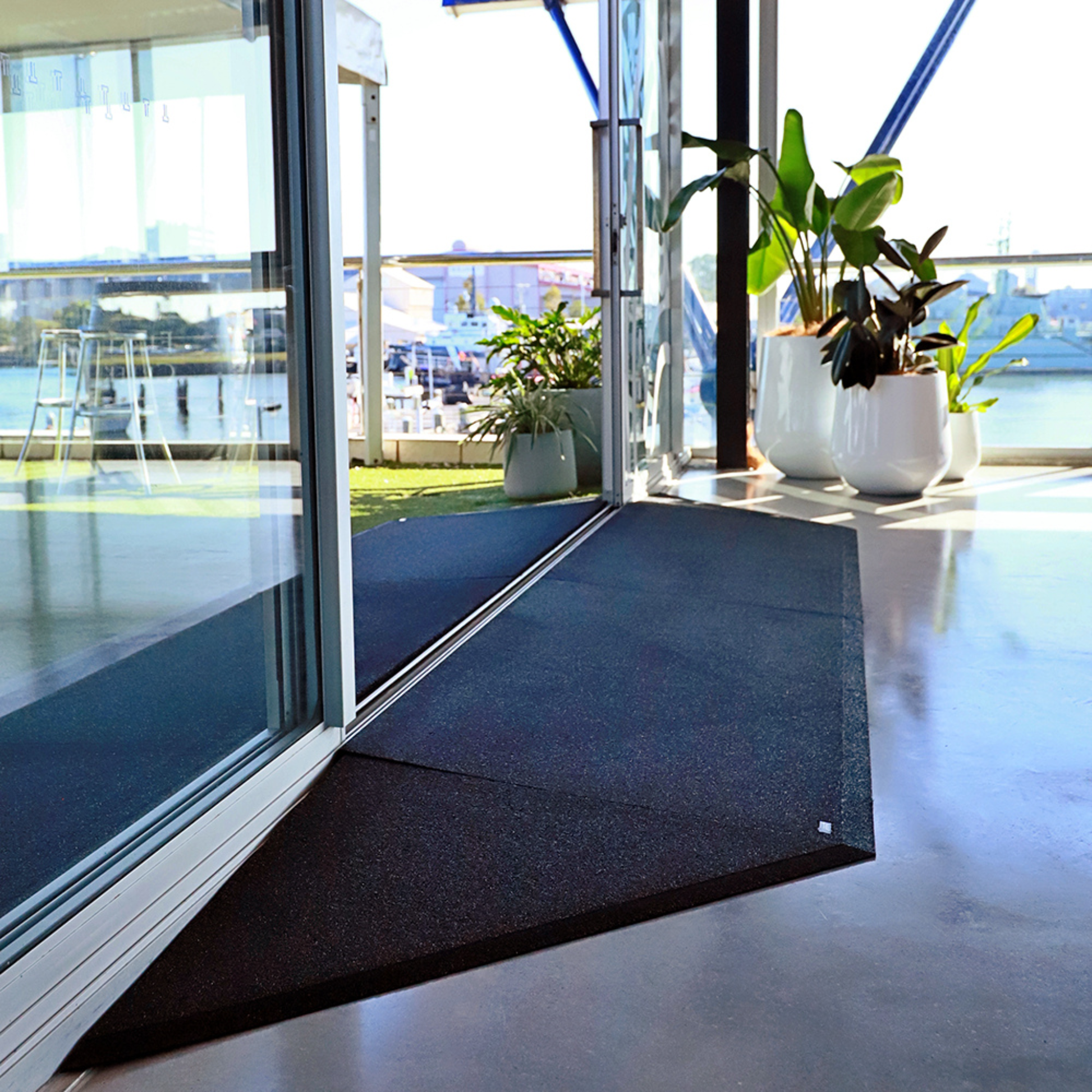

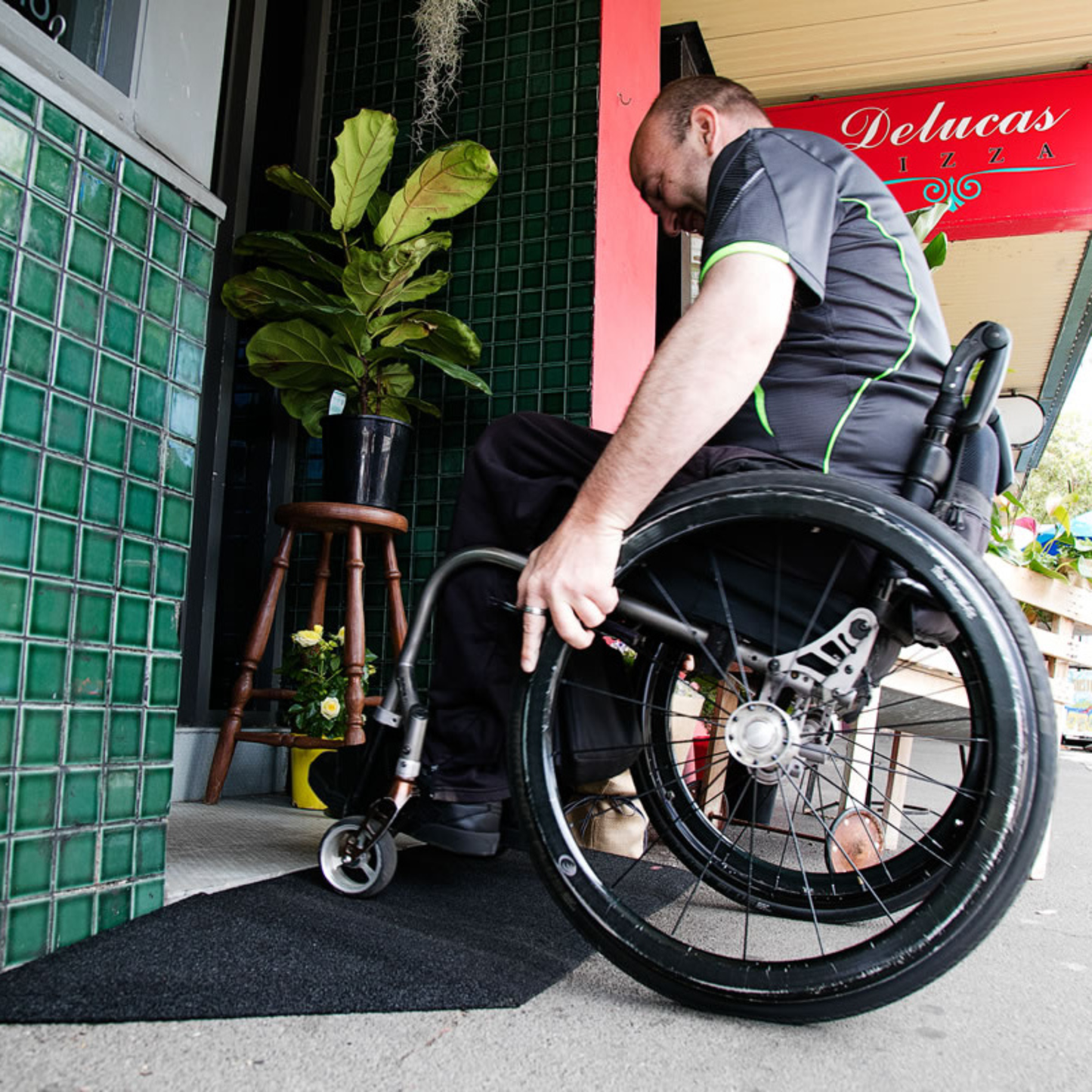

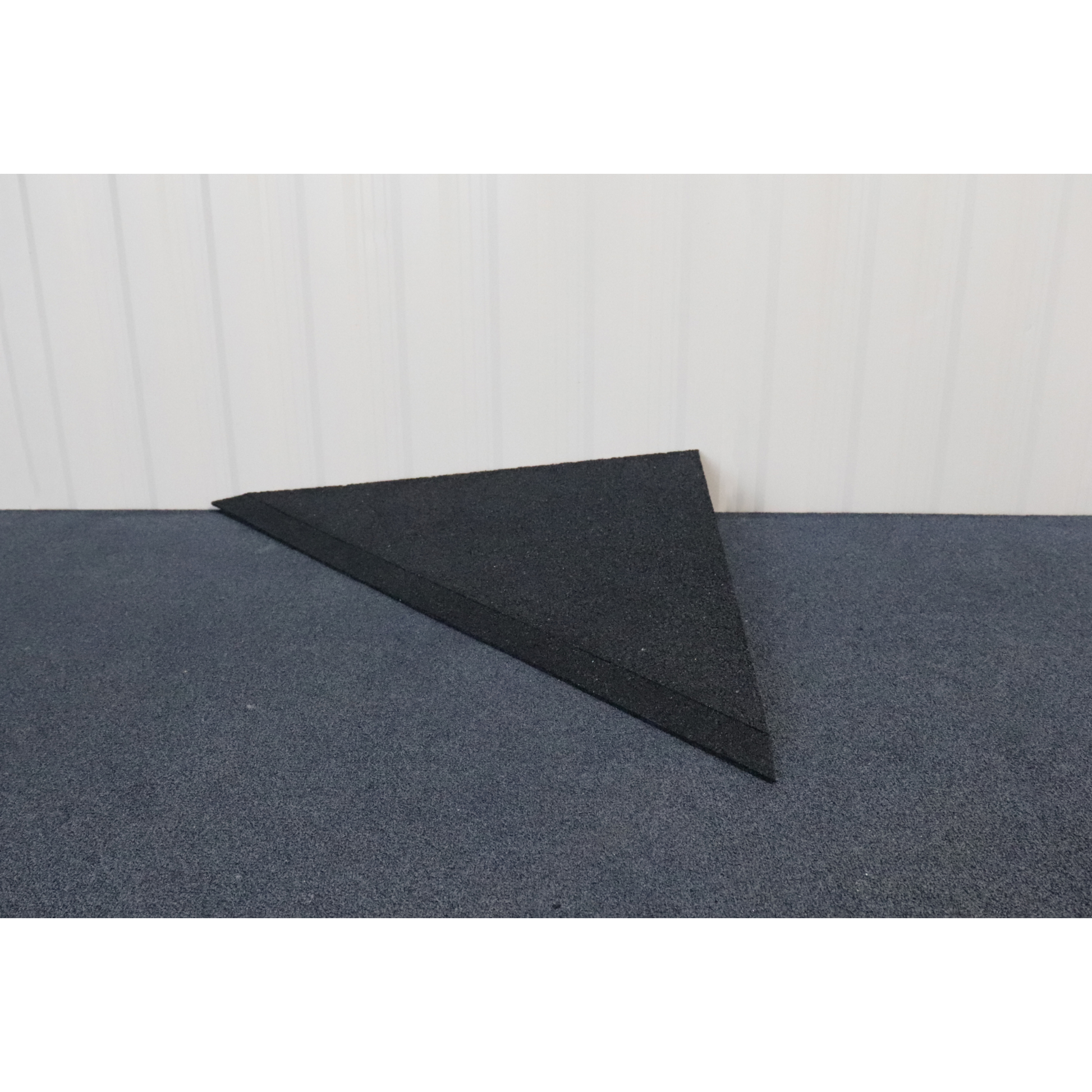

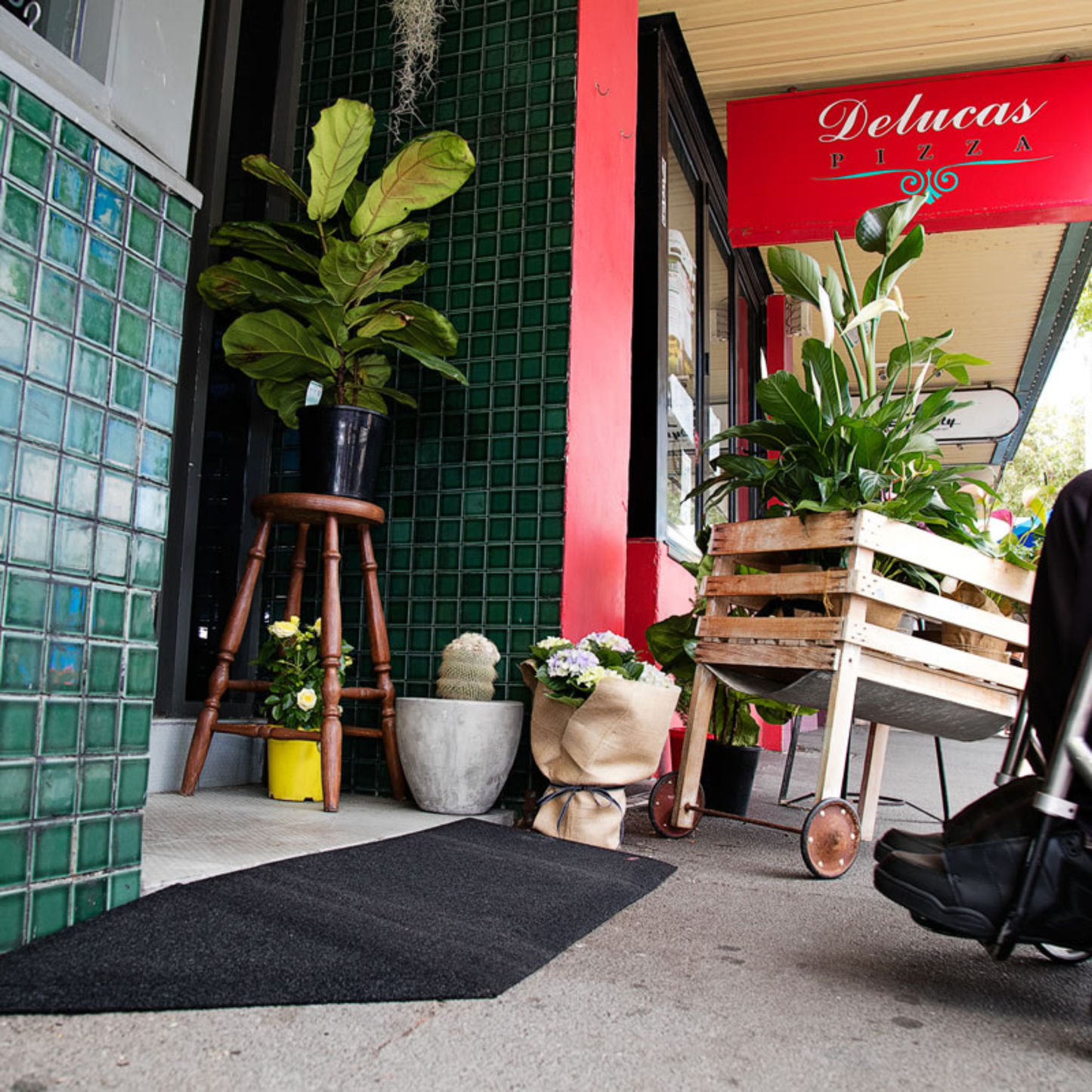

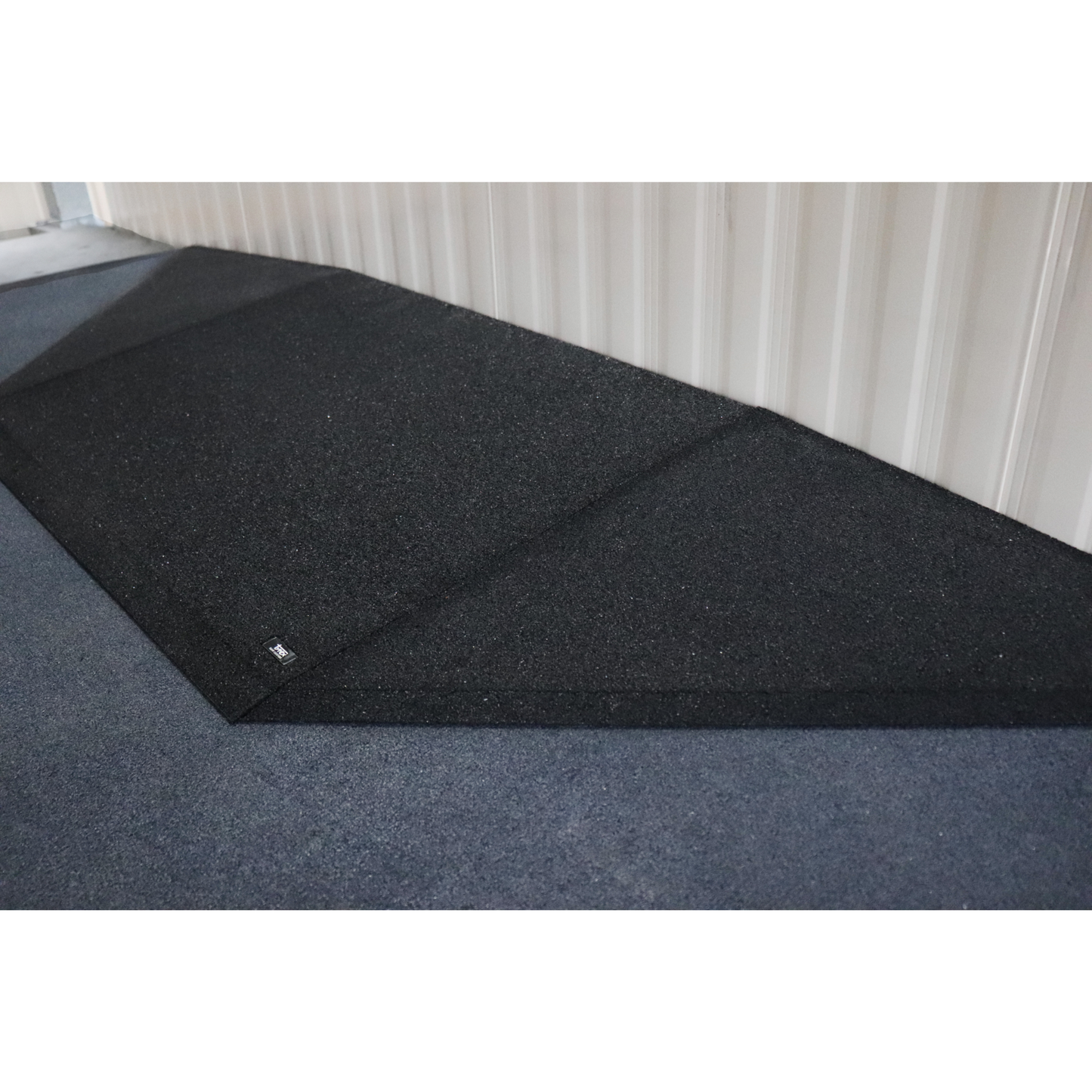

Tyrex 1:8 Gradient Ramp Wings are designed to improve accessibility by providing smooth and safe side entry onto your main 1:8 gradient ramp. These triangular wing sections allow users to approach the ramp from an angle, reduce potential trip hazards, and enhance usability for wheelchairs, walkers, mobility scooters, prams and trolleys.
Proudly manufactured in Australia using recycled tyre rubber, these wings offer excellent durability, weather resistance and long-term performance. They are suitable for residential, commercial and public-access environments.
Key Features
- 1:8 gradient for seamless side access onto your ramp
- Australian-made from recycled tyre rubber
- Slip-resistant and UV-resistant surface for indoor & outdoor use
- Heavy-duty construction for long-term, reliable performance
- Universal fit – install on either side of your ramp
- NDIS-friendly and suitable for home or workplace modifications
Dimensions – Wing Specifications
These wings are designed to match Tyrex 1:8 Gradient Ramps. Each wing is manufactured in the same height (A) as your ramp and follows the same 1:8 gradient:
- Height (A): matches the height of your main ramp
- Length (B): calculated as Height (A) × 8
- Width (C): equal to Length (B)
- Gradient: 1:8
Example: A 50mm wing has a length and width of 400mm.
Please note prices shown are for the wing only. Shipping is quoted separately due to weight and location. Please request a quote and we will be happy to help you with accurate delivery pricing.
Dimensions – Wing Specifications
These wings are designed to match Tyrex 1:8 Gradient Ramps. Each wing is manufactured in the same height (A) as your ramp and follows the same 1:8 gradient:
- Height (A): matches the height of your main ramp
- Length (B): calculated as Height (A) × 8
- Width (C): equal to Length (B)
- Gradient: 1:8
Example: A 50mm wing has a length and width of 400mm.
Prices shown are for the wing only. Shipping is quoted separately due to weight and location. Please request a quote and we will be happy to help you with accurate delivery pricing.
Please note: each purchase or quote request is for one wing. If you require wings on both sides of your ramp, please request a quantity of 2.
Wing Size & Price Table – 1:8 Gradient Wings (900mm Wide)
| Height (A) | Length (B) | Width (C) | Price (AUD) |
|---|---|---|---|
| 35mm | 280mm | 280mm | $54.00 |
| 40mm | 320mm | 320mm | $59.00 |
| 45mm | 360mm | 360mm | $71.00 |
| 50mm | 400mm | 400mm | $87.00 |
| 55mm | 440mm | 440mm | $95.00 |
| 60mm | 480mm | 480mm | $111.00 |
| 65mm | 520mm | 520mm | $116.00 |
| 70mm | 560mm | 560mm | $131.00 |
| 75mm | 600mm | 600mm | $139.00 |
| 80mm | 640mm | 640mm | $144.00 |
| 85mm | 680mm | 680mm | $149.00 |
| 90mm | 720mm | 720mm | $167.00 |
| 95mm | 760mm | 760mm | $173.00 |
| 100mm | 800mm | 800mm | $198.00 |
| 105mm | 840mm | 840mm | $220.00 |
| 110mm | 880mm | 880mm | $228.00 |
| 115mm | 920mm | 920mm | $242.00 |
| 120mm | 960mm | 960mm | $250.00 |
| 125mm | 1000mm | 1000mm | $265.00 |
| 130mm | 1040mm | 1040mm | $305.00 |
| 135mm | 1080mm | 1080mm | $332.00 |
| 140mm | 1120mm | 1120mm | $345.00 |
| 145mm | 1160mm | 1160mm | $385.00 |
| 150mm | 1200mm | 1200mm | $399.00 |
Ideal Locations
- Homes and apartments
- Aged care and disability facilities
- Retail, hospitality and commercial spaces
- Industrial and warehouse environments
- Sliding doors, thresholds, patios and garages
Lead Times
- Standard wings up to 100mm high: approx. 7 working days
- Made-to-order wings 105–150mm high: approx. 14 working days
- Custom designs: approx. 20 working days depending on complexity
Custom Wings
- Non-standard widths, gradients or designs available on request
- Contact us with your measurements for a tailored quote
Looking for the matching 1:8 Gradient Rubber Ramp?
View the 1:8 Gradient Ramp here
NDIS Information
This product is suitable for NDIS participants and can be purchased using your consumables funding (low cost assistive technology under $1500).
- Self-managed: purchase directly online and claim through your NDIS portal
- Plan-managed: request an invoice for your plan manager
Installation
Wings can be placed directly against the side of your main ramp. For heavy ramps, uneven surfaces or complex installations, professional assistance is recommended.
Why Choose Tyrex?
- Exceptional durability and stability
- Environmentally friendly recycled rubber
- Trusted Australian manufacturer since 1990
