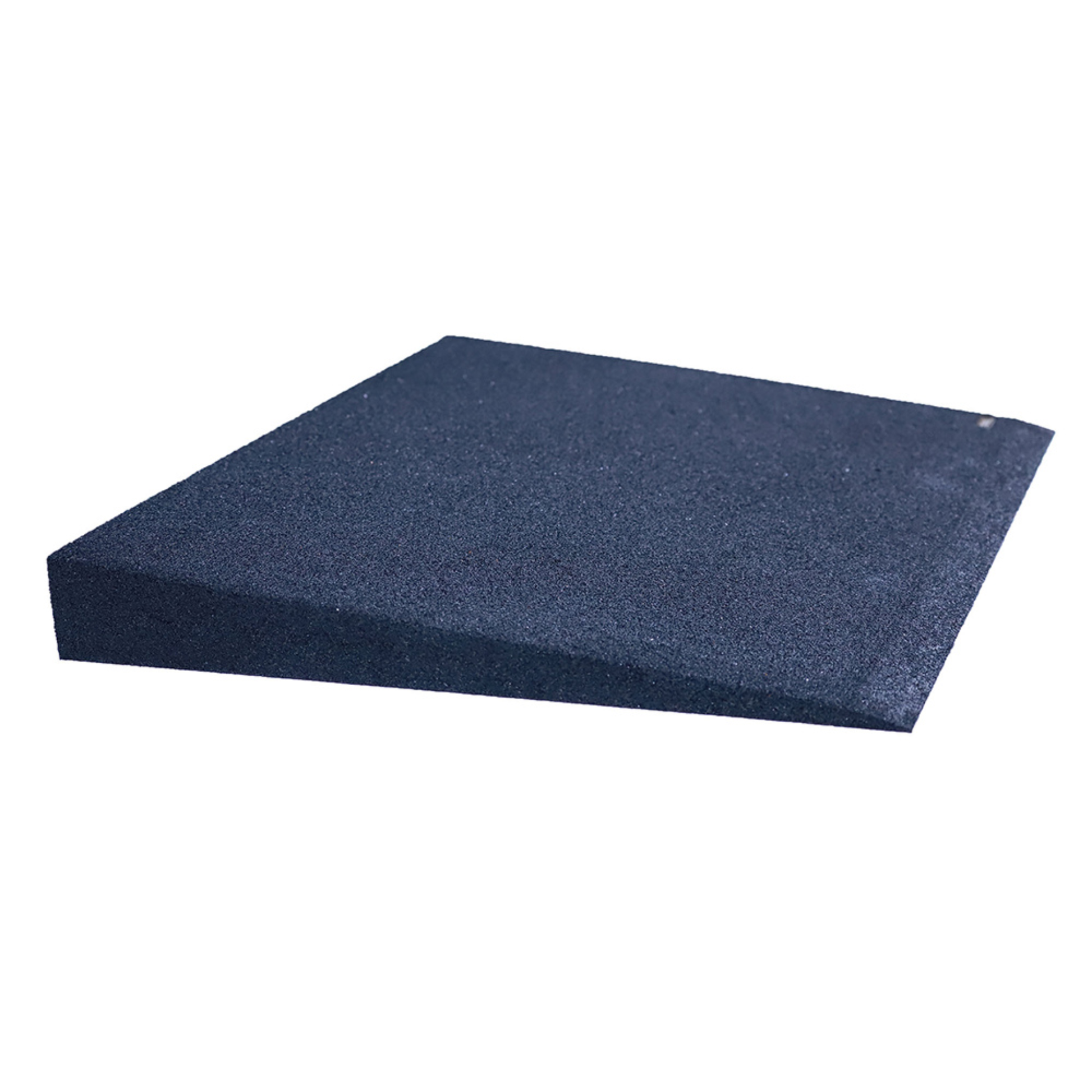

1:10 Gradient Rubber Ramp – 900mm Wide (Recycled Tyre Rubber)
Australian-made • Durable • Safe • NDIS-friendly

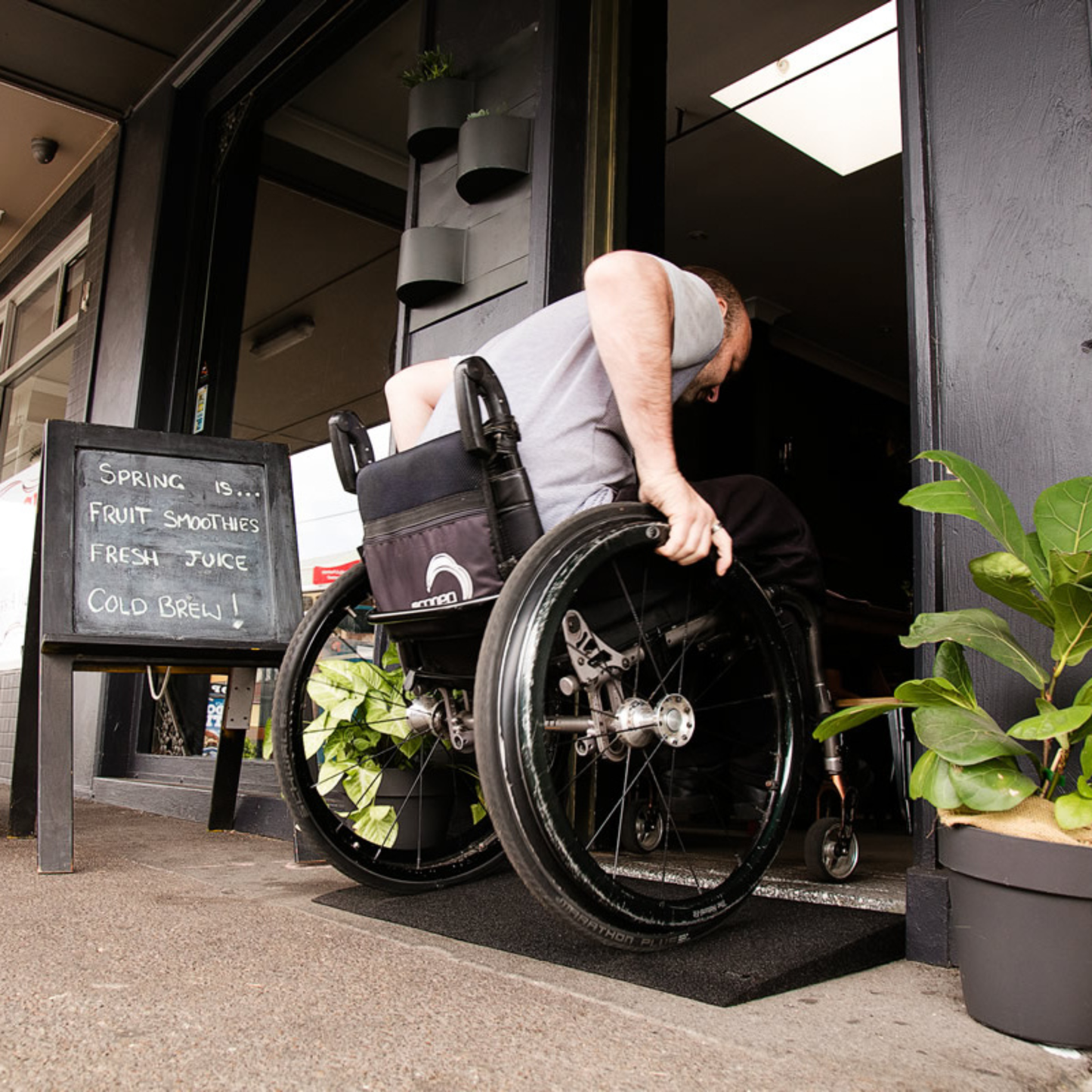

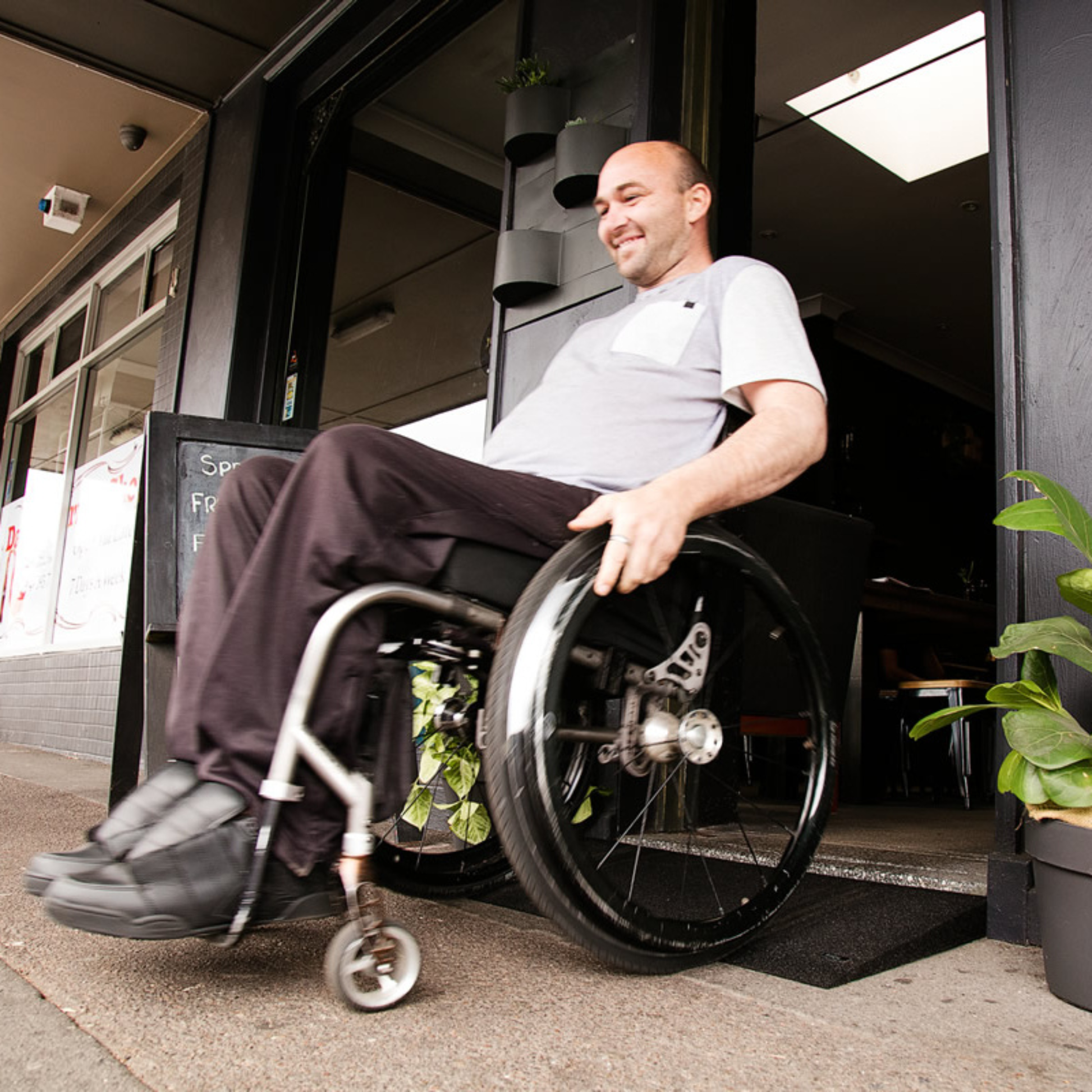

Improve access instantly with the Tyrex 1:10 Gradient Rubber Ramp – a strong, stable and environmentally friendly solution designed to make thresholds safer for wheelchair users, mobility aids, walkers, scooters, prams and trolleys.

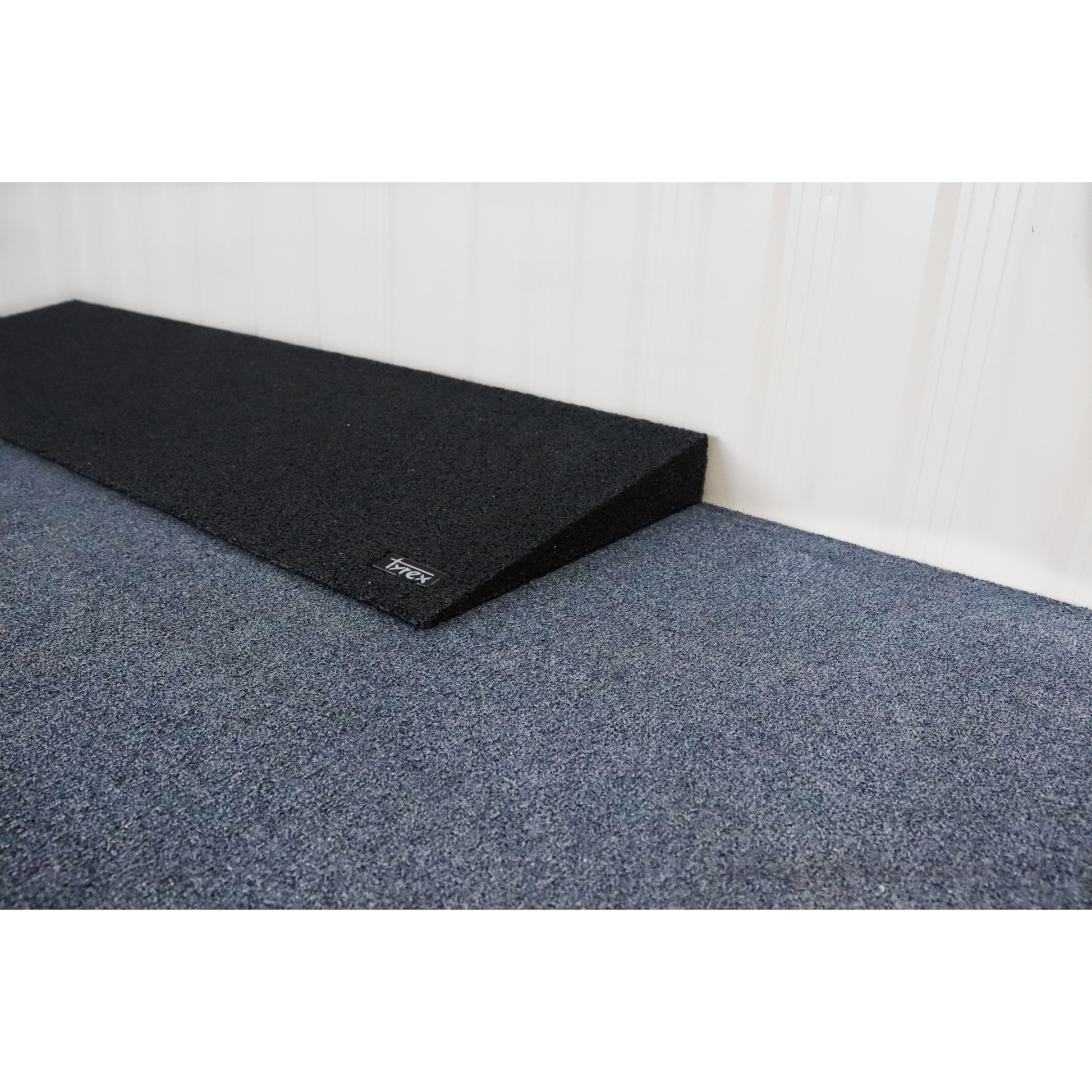

Made in Australia using recycled tyre rubber, this 900mm-wide threshold ramp provides a smooth transition over small steps, doorways, sliding door tracks and uneven surfaces. The 1:10 gradient offers a gentle, easy-to-navigate incline suitable for homes, workplaces, aged-care facilities and commercial environments.
Key Features
- 1:10 gradient for a gentle, safe incline over common thresholds
- Australian-made from recycled car tyre rubber
- Slip-resistant, UV-resistant surface for indoor and outdoor use
- Heavy-duty construction designed for long-term durability
- Simple installation – place against the step or fix in position if required
- Optional side wings to extend the ramp and reduce edge drop-off
- NDIS-friendly option for improved accessibility at home or work
Dimensions – 900mm Standard Width
This product is a 1:10 gradient ramp with a fixed width of 900mm (C). Height and length will vary based on your selection.
- Width (C): 900mm
- Gradient: 1:10
- Height (A): choose your required height
- Length (B): calculated as Height (A) × 10
Example: a 10mm height results in a 100mm ramp length.
The table below shows the matching ramp length (B) for each height (A). Width (C) is fixed at 900mm.
Please note prices shown are for the ramp only. Shipping is calculated separately based on total order weight and location. Please use the “Request a quote” button and we’ll be happy to help with accurate delivery pricing.
| Height (A) | Length (B) | Width (C) | Price (AUD) |
|---|---|---|---|
| 10mm | 100mm | 900mm | $54.00 |
| 15mm | 150mm | 900mm | $58.00 |
| 20mm | 200mm | 900mm | $66.00 |
| 25mm | 250mm | 900mm | $84.00 |
| 30mm | 300mm | 900mm | $99.00 |
| 35mm | 350mm | 900mm | $116.00 |
| 40mm | 400mm | 900mm | $135.00 |
| 45mm | 450mm | 900mm | $150.00 |
| 50mm | 500mm | 900mm | $174.00 |
| 55mm | 550mm | 900mm | $199.00 |
| 60mm | 600mm | 900mm | $214.00 |
| 65mm | 650mm | 900mm | $243.00 |
| 70mm | 700mm | 900mm | $282.00 |
| 75mm | 750mm | 900mm | $309.00 |
| 80mm | 800mm | 900mm | $337.00 |
| 85mm | 850mm | 900mm | $345.00 |
| 90mm | 900mm | 900mm | $385.00 |
| 95mm | 950mm | 900mm | $405.00 |
| 100mm | 1000mm | 900mm | $445.00 |
| 105mm | 1050mm | 900mm | $465.00 |
| 110mm | 1100mm | 900mm | $499.00 |
| 115mm | 1150mm | 900mm | $529.00 |
| 120mm | 1200mm | 900mm | $559.00 |
| 125mm | 1250mm | 900mm | $589.00 |
| 130mm | 1300mm | 900mm | $634.00 |
| 135mm | 1350mm | 900mm | $669.00 |
| 140mm | 1400mm | 900mm | $733.00 |
| 145mm | 1450mm | 900mm | $770.00 |
| 150mm | 1500mm | 900mm | $805.00 |
| 155mm | 1550mm | 900mm | $900.00 |
| 160mm | 1600mm | 900mm | $930.00 |
Standard heights are available up to 160mm. Larger or unusual sizes can be made as custom ramps.
Ideal Locations
These threshold ramps are suitable for:
- Homes and apartments
- Aged care and disability support facilities
- Retail, hospitality and office spaces
- Industrial and warehouse environments
- Sliding door tracks, entry thresholds, internal transitions, garages and patios
Lead Times
- Standard ramps up to 100mm high: approximately 7 working days
- Made-to-order ramps 105–160mm high: approximately 14 working days
- Custom designs: usually around 20 working days (depending on complexity)
Optional Add-ons
Side Transition Wings (1:10 Gradient)
- Extend ramp coverage and create a smoother side entry
- Must be ordered at the same height and gradient as your ramp
Need side wings for angled entry? Click here to view the matching 1:10 Ramp Wings.
Custom Ramps
- Non-standard widths, heights or gradients available on request
- Contact us with your measurements for a tailored quote
NDIS Information
This product is suitable for NDIS participants and can be purchased using consumables funding (low cost assistive technology under $1500).
- Self-managed: purchase directly online and claim through your NDIS portal
- Plan-managed: request an invoice so your plan manager can process payment
Measuring & Installation
To select the correct size, measure the vertical height of the step or threshold. Ramp length is calculated using the simple formula:
Ramp length (B) = Height (A) × 10
Most ramps can be placed directly against the step on a clean, stable surface. For heavier ramps, multiple steps or complex layouts, professional installation is recommended.
Why Choose a Tyrex Rubber Ramp?
Tyrex has been manufacturing high-quality recycled rubber access products in Australia since 1990. Their ramps are known for:
- Exceptional durability and stability
- Eco-friendly use of recycled materials
- Proven performance in both domestic and commercial settings
