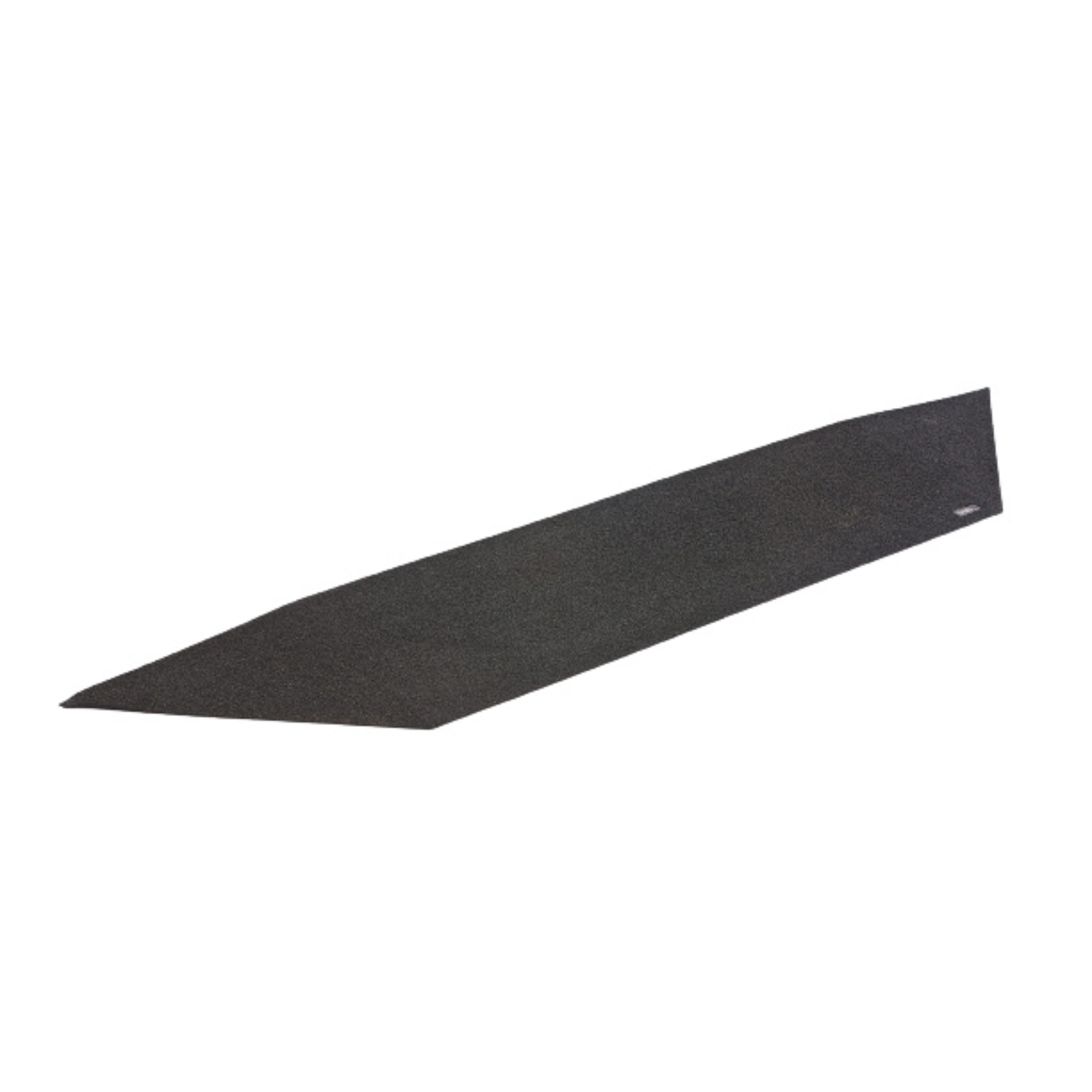

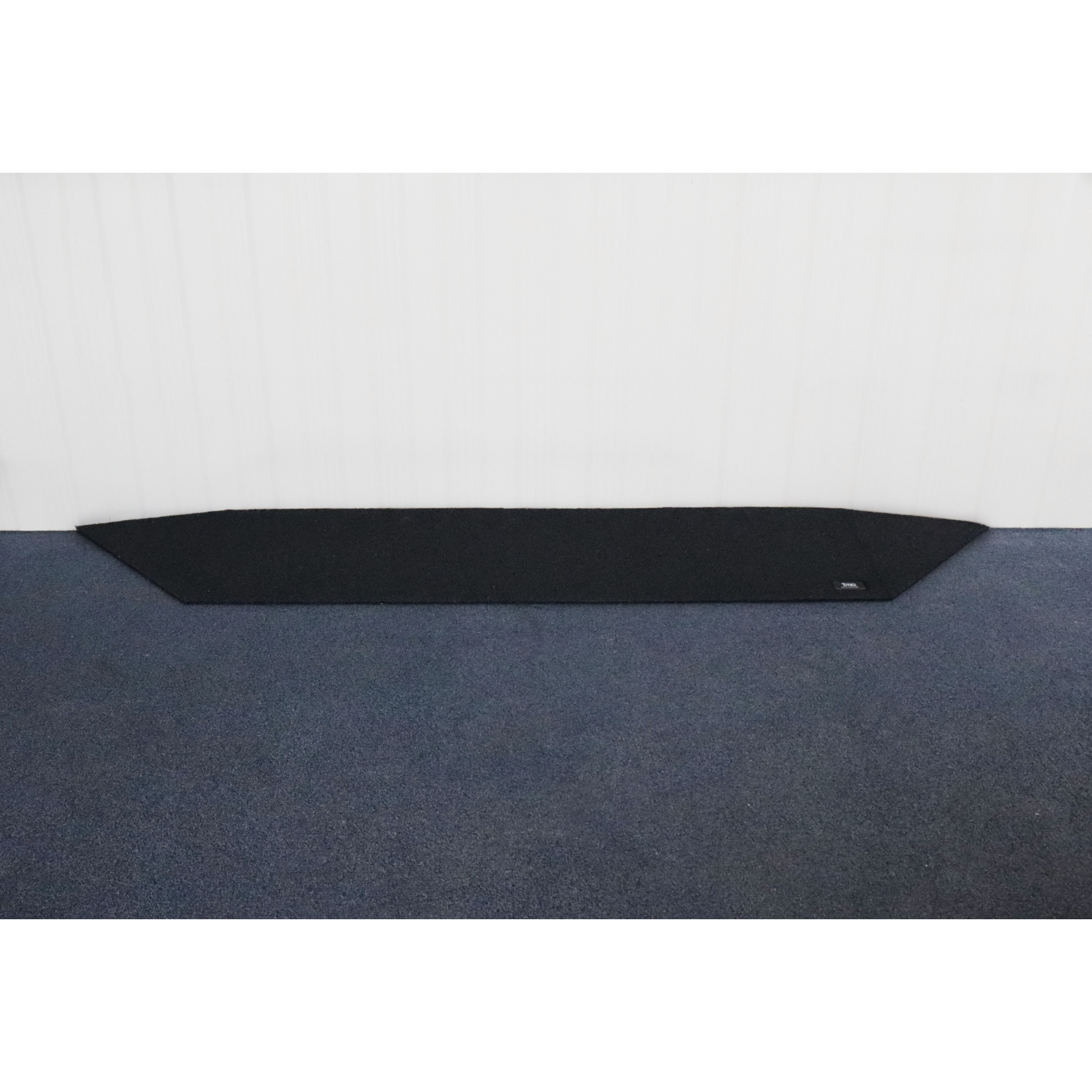

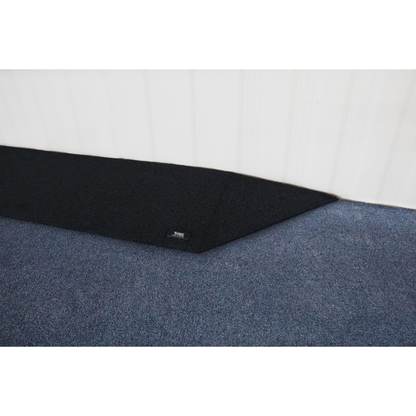

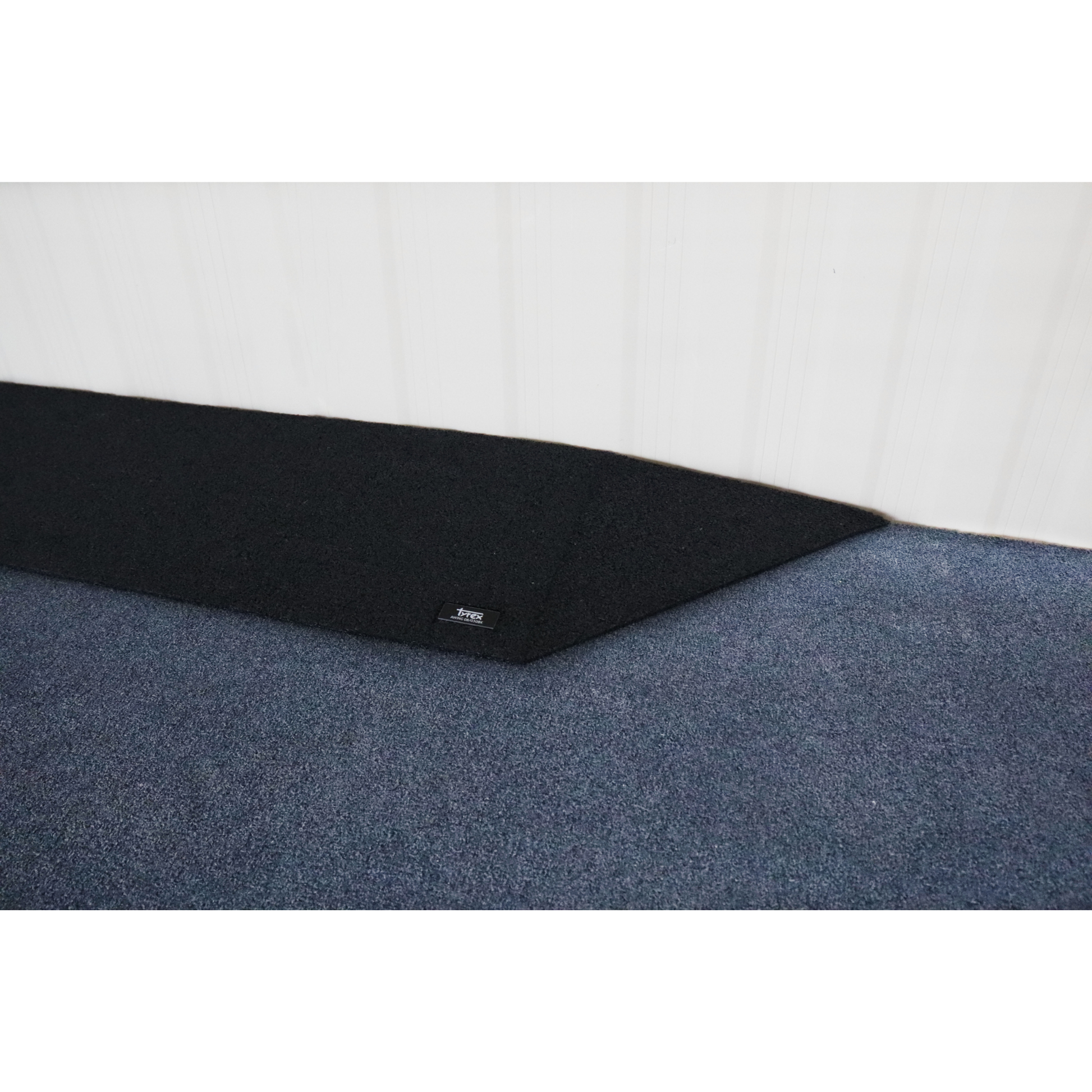

1:8 Gradient Rubber Ramp with Attached Wings
Australian-made • Durable • Safe • NDIS-friendly
Improve access instantly with the Tyrex 1:8 Gradient Rubber Ramp with Attached Wings – a stable, heavy-duty and environmentally friendly solution designed for safer threshold transitions.
Commonly known as a winged rubber ramp or Awing, this design combines a central threshold ramp with integrated side wings, allowing smooth side entry and reducing edge drop-off. Ideal for wheelchair users, mobility aids, walkers, scooters, prams and trolleys.
Manufactured in Australia from recycled tyre rubber, Tyrex Awings provide reliable performance for both residential and commercial environments.
Key Features
- Integrated ramp + wing design for smooth front and side transitions
- 1:8 gradient for a safe, easy-to-navigate incline
- Australian-made from recycled car tyre rubber
- Slip-resistant, UV-resistant surface for indoor and outdoor use
- Heavy-duty construction designed for long-term durability
- Simple installation – place against the step or threshold
- NDIS-friendly accessibility solution

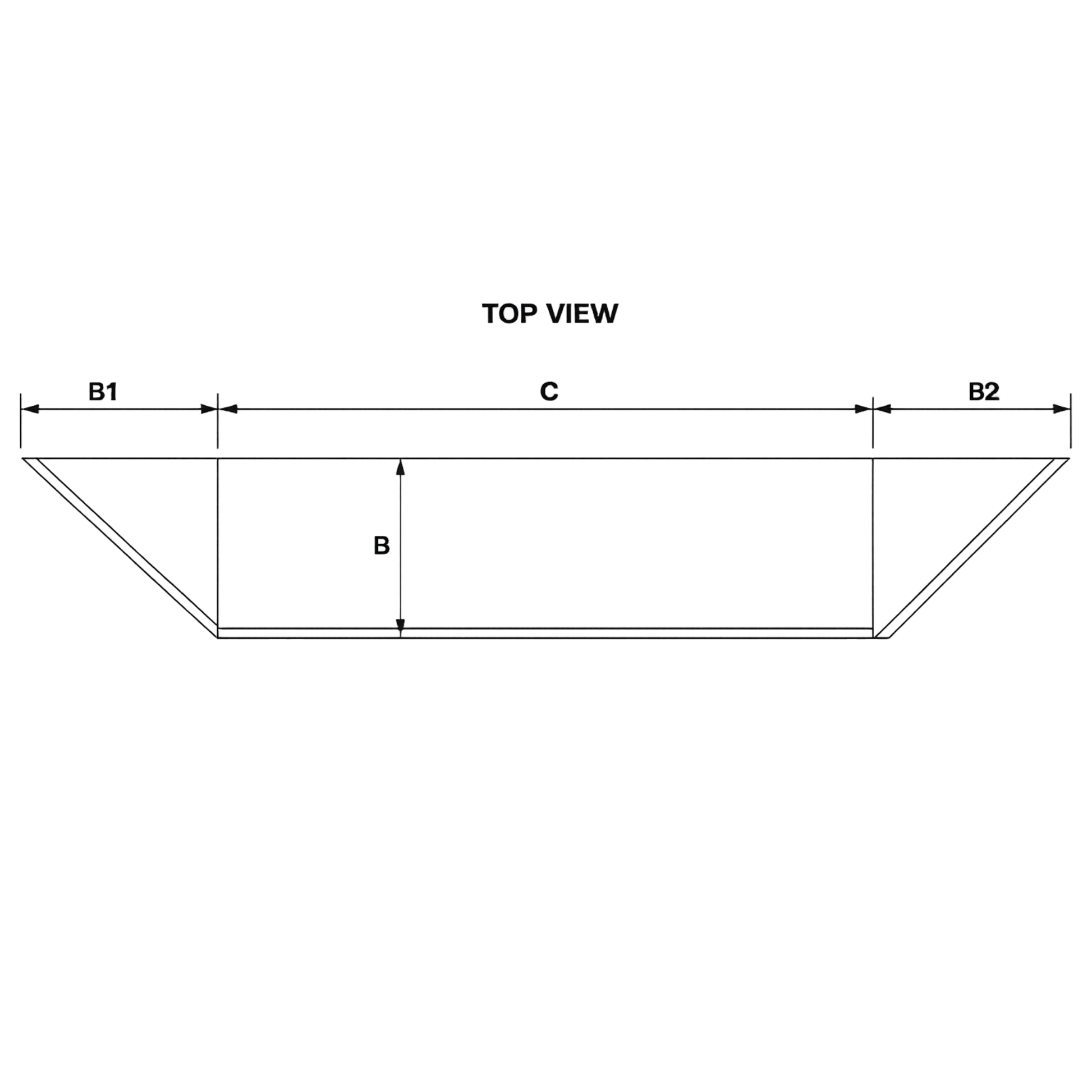

Dimensions – 900mm Ramp Width + Attached Wings
This product includes a central 1:8 gradient ramp with 1:8 gradient wings permanently attached on both sides.
- Gradient: 1:8
- Height (A): select required height
- Ramp Length (B): Height (A) × 8
- Wing Length (B1): Height (A) × 8
- Ramp Width (C): 900mm
- Wing Width (B2): Height (A) × 8
- Total Width: 900mm + (Height (A) × 16)
Example: a 20mm height results in an 160mm ramp length and wing width of 160mm each side, giving a total width of 1220mm.
The table below shows ramp length and total width for each height option. Prices are exclusive of GST.
| Height (A) | Ramp Length (B) | Ramp Width (C) | Total Width | Price (AUD) |
|---|---|---|---|---|
| 10mm | 80mm | 900mm | 1060mm | $101.00 |
| 15mm | 120mm | 900mm | 1140mm | $119.00 |
| 20mm | 160mm | 900mm | 1220mm | $134.00 |
| 25mm | 200mm | 900mm | 1300mm | $149.00 |
| 30mm | 240mm | 900mm | 1380mm | $164.00 |
| 35mm | 280mm | 900mm | 1460mm | $180.00 |
Please note: For larger height requirements, ramps and wings must be purchased separately.
Ideal Locations
- Homes and apartments
- Aged care and disability support facilities
- Retail, hospitality and office spaces
- Sliding door tracks and entry thresholds
- Internal transitions and small steps
NDIS Information
This product can be purchased GST-free by all eligible self-managed and plan-managed NDIS participants.
To arrange a GST-free invoice or quote, please provide:
- NDIS participant number
- NDIS plan start and end dates
Measuring & Selection
Measure the vertical height of the threshold or step:
Ramp Length (B) = Height (A) × 8
For unusual layouts or tight spaces, contact us for sizing advice.
Why Choose a Tyrex made ramp?
Tyrex has been manufacturing recycled rubber accessibility solutions in Australia since 1990. Their products are trusted for:
- Exceptional durability and stability
- Slip-resistant safety surfaces
- Eco-friendly recycled materials
- Reliable domestic and commercial performance
