1:10 Gradient Rubber Access Ramp Wings
1:10 Gradient Rubber Access Ramp Wings
Couldn't load pickup availability

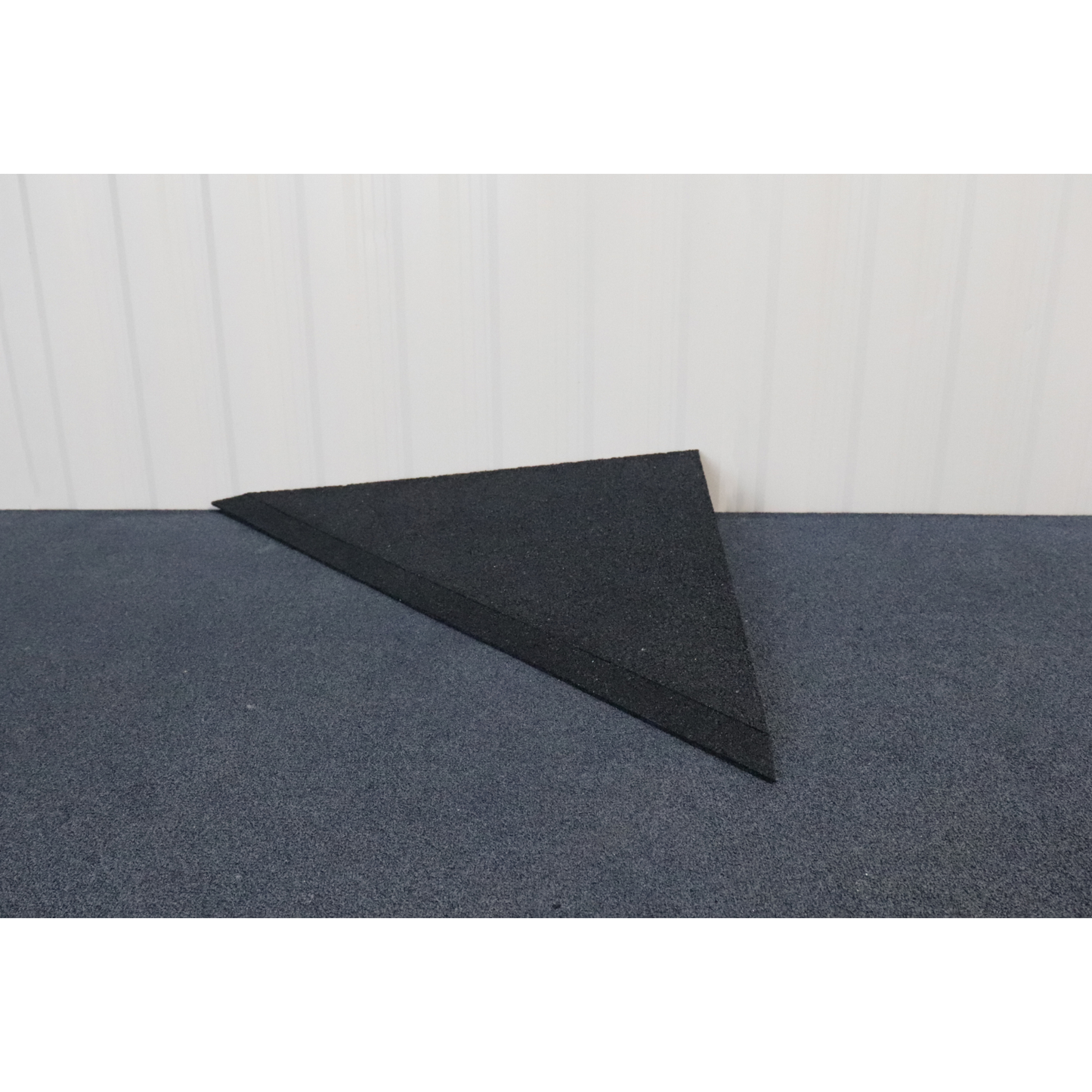

1:10 Gradient Rubber Ramp Wings
(Recycled Tyre Rubber)
Australian-made • Durable • Safe • NDIS-friendly
Tyrex 1:10 Gradient Rubber Ramp Wings are designed to work alongside the 1:10 Gradient Rubber Ramps to provide smoother, safer side access. These triangular wings sit alongside the main ramp, allowing users to approach from an angle while reducing trip hazards at the ramp edges.
Made in Australia from recycled tyre rubber, these wings are a strong, stable and eco-friendly way to improve accessibility for wheelchairs, walkers, mobility scooters, prams and trolleys. The 1:10 gradient offers a gentler incline than 1:8, making it ideal where extra length is available and a shallower slope is preferred.
Key Features
- Designed for 1:10 ramps – matches Tyrex 1:10 Gradient Rubber Ramps
- Improves side access & safety – reduces edge drop-off and trip hazards
- Australian-made from recycled car tyre rubber
- Slip-resistant and UV-resistant surface – suitable for indoor and outdoor use
- Heavy-duty construction for long-term durability
- Simple installation – position alongside the main ramp or fix in place if required
- NDIS-friendly option for improved accessibility at home, work or in the community
Dimensions – Wing Specifications
These wings are designed to match Tyrex 1:10 Gradient Rubber Ramps. Each wing is manufactured to the same height (A) as your ramp and follows the same 1:10 gradient:
- Height (A): matches the height of your main 1:10 ramp
- Length (B): calculated as Height (A) × 10
- Width (B1): equal to Length (B)
- Gradient: 1:10
Example: A 70mm wing has a length and width of 700mm.
Please note: each purchase or quote request is for one wing. If you require wings on both sides of your ramp, please request a quantity of 2.
Prices shown are for the wing only. Shipping is calculated separately based on total order weight and location. Please request a quote and we will be happy to help you with accurate delivery pricing.
This product can be purchased GST-free by eligible NDIS participants.
To receive a quote or invoice for a GST-free NDIS order, please let us know you are an NDIS participant and provide:
- NDIS participant number
- NDIS plan start and end dates
The table below shows the matching wing length (B) and width (B1) for each height (A).
| Height (A) | Length (B) | Width (B1) | Price (AUD) |
|---|---|---|---|
| 35mm | 350mm | 350mm | $61.00 |
| 40mm | 400mm | 400mm | $67.00 |
| 45mm | 450mm | 450mm | $85.00 |
| 50mm | 500mm | 500mm | $99.00 |
| 55mm | 550mm | 550mm | $117.00 |
| 60mm | 600mm | 600mm | $135.00 |
| 65mm | 650mm | 650mm | $139.00 |
| 70mm | 700mm | 700mm | $160.00 |
| 75mm | 750mm | 750mm | $184.00 |
| 80mm | 800mm | 800mm | $189.00 |
| 85mm | 850mm | 850mm | $199.00 |
| 90mm | 900mm | 900mm | $222.00 |
| 95mm | 950mm | 950mm | $233.00 |
| 100mm | 1000mm | 1000mm | $274.00 |
| 105mm | 1050mm | 1050mm | $307.00 |
| 110mm | 1100mm | 1100mm | $315.00 |
| 115mm | 1150mm | 1150mm | $340.00 |
| 120mm | 1200mm | 1200mm | $355.00 |
| 125mm | 1250mm | 1250mm | $379.00 |
| 130mm | 1300mm | 1300mm | $435.00 |
| 135mm | 1350mm | 1350mm | $469.00 |
| 140mm | 1400mm | 1400mm | $479.00 |
| 145mm | 1450mm | 1450mm | $530.00 |
| 150mm | 1500mm | 1500mm | $550.00 |
Standard wing heights are available from 35mm to 150mm. Larger, smaller or unusual configurations can be made as custom wings.
Ideal Locations
These wings are suitable wherever a 1:10 Gradient Rubber Ramp is installed, including:
- Homes and apartments
- Aged care and disability support facilities
- Retail, hospitality and office spaces
- Industrial and warehouse environments
- Entry thresholds, internal transitions, garages and patios
Lead Times
- Up to 100mm high: typically 1–5 working days
- 105mm to 160mm high: typically 5–10 working days
- Custom items: varies depending on complexity, but usually up to 15–20 working days
Custom Ramps & Wings
- Non-standard gradients, heights or layouts available on request
- Contact us with your measurements and photos for a tailored quote
Looking for the matching 1:10 Gradient Rubber Ramp? Click here to view the range.
NDIS Information
This product is suitable for NDIS participants and is typically funded under consumables (low cost assistive technology).
- Self-managed: request a quote or invoice, then claim through your NDIS portal once paid.
- Plan-managed: request an invoice so your plan manager can process payment.
Why Choose a Tyrex Rubber Wing?
Tyrex has been manufacturing high-quality recycled rubber access products in Australia since 1990. Their ramps and wings are known for:
- Exceptional durability and stability
- Eco-friendly use of recycled tyre rubber
- Proven performance in both domestic and commercial environments
